Use time-based cards to show tasks as they progress over time.
These cards use tasks' historical data to show tasks as they were at different points in time.
For example, you can show how your tasks' priority, time estimates, or Sprint points changed during a month-long project.
Dashboards availability and limits vary by plan and user role. Learn more
Card feature availability and limits vary by plan and user role. Learn more
Time-based cards
The following cards are time-based:
- Bar Chart (when the X Axis uses Time or Dates including Date Custom Fields)
- Line Chart
- Priority Over Time
- Tag Usage Over Time
- Total time in Status
- Burndown
- Burnup
- Cumulative Flow
- Cycle time
- Lead time
- Velocity
Time-based card settings
The following card settings are available and applied when using a time-based card.
Time period options
The following table outlines the available time period options for time-based cards:
| Time period option | Description |
|
All available dates |
Includes dates based on the available task data. |
|
This year |
Includes task data from the current calendar year. |
|
This month |
Includes task data from the current calendar month. |
|
This week |
Includes task data from the current calendar week. |
|
Rolling period |
Select a relative time range between 1 and 365 days. The card will automatically continue to report on that same range of time. |
|
Range |
Select a custom range of dates. |
Sort by
The only sort by option available for time based cards is the Default option, which shows dates chronologically from oldest to newest for the selected time period.
Filters on time-based cards
Filters are applied to time-based cards as outlined below:
- Filter criteria are applied and tasks that currently meet those criteria are included.
- Historical data is used as data points in the y-axis calculations, for each point along the x-axis.
- A filter type that no longer exists in the Workspace, like a deleted status, will continue to apply to that task. This is because historical data captured tasks in that status.
For example, you create a Priority Over Time card with the time range set to This month, by days.
- Each Priority is represented by a separate line series on the chart.
- The x-axis represents the selected time range (this month, by days).
- The y-axis represents the number of tasks in each priority on each day.

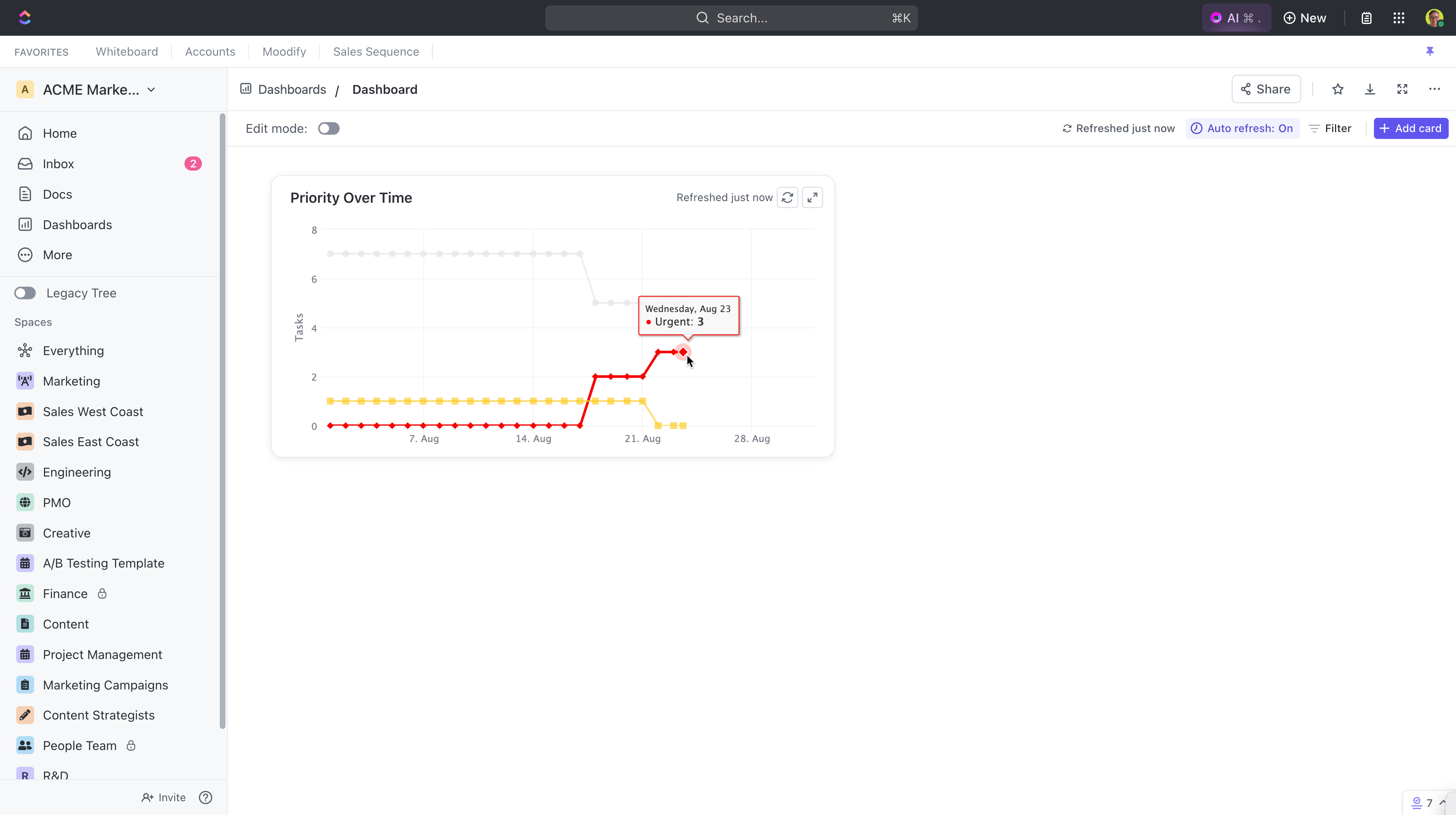

In the chart below, on August 22 there was 1 High Priority task and 2 Urgent Priority tasks:
On August 23, a High Priority task was upgraded to Urgent priority. The card displays 0 High Priority tasks and 3 Urgent Priority tasks for August 23.
The same task is included in the High Priority series on August 22nd, then in the Urgent Priority series on August 23rd.
